Seed Germinators

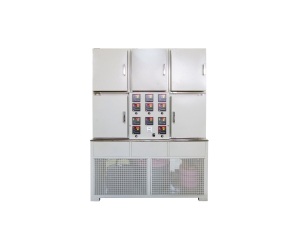

CLIMATED COMPARTMENT - GERMINATOR
Destination: The germinator is intended for use in physicochemical analysis laboratories for determining seed germination power and seedlings material characterization.
Technical, constructive and functional features:
- Stainless steel enclosure, divided into 5 separate, insulated rooms, with independent functionality;
- Useful dimensions Climate Modules (LxWxL): 250 x 300 x 250 mm;
- Outer casing made of steel sheet painted in electrostatic field.
- 5 interior, transparent glass doors with magnetic lock;
- Recirculating system, with fans, for medium homogenization throughout the premises;
- Separated, individually controlled, climatic modules;
- Independent adjustment and monitoring for temperature, humidity and time parameters;
- Lighting adjustable as duration and intensity;
- Possibility to implement special "diurn / nocturn" program;
- Digital and optical display of monitored parameters;
- Nominal working temperatures: 0 ... + 50 ° C;
- Accuracy of temperature measurement: +/- 0.4 ºC;
- Uniformity of temperature in the stabilized mode in the range: +/- 1 ºC;
- Thermoregulating accuracy: ± 0,1 ºC;
- Temperature display resolution: 0,1 ºC;
- Controlled humidity range: 30 ... 90% RH;
- Accuracy Measuring Humidity: +/- 2%
- Uniformity of humidity in stabilized mode: +/- 10% RH;
- Supply voltage: 230 V, 50 Hz;
- Installed power: 2,000 W;
- Low power consumption
- Safety in operation (processes are controlled by microprocessor)
- High reliability provided by the components used:
- Temperature controller Germany
- Thermo-hygrometer, sensors and electronic components imported CE / USA
- Protection against accidental interruption of power supply (automatic resumption of the thermostat program);
- Self-protection (defective thermocouple, overtemperature, defective power control element)
