Rotative Forge Oven

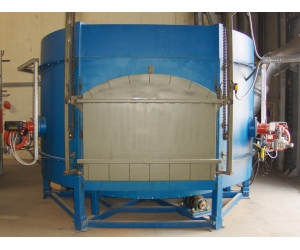

ROTATIVE FORGE OVEN , product code CFR-2200-1300 / 3A
Destination: Heating of ferrous and non-ferrous alloys for hot plastic deformation. The minimum working temperature is 300 degrees Celsius - the maximum temperature is 1300 degrees Celsius with the possibility of constantly maintaining the heating temperature. The oven has a useful inner diameter of 2200 mm and a useful inner height of 1300 mm.
Key technical features:
- useful rotation hearth diameter: 2200 mm,
- height oven chamber: 1300 mm,
- empty door size [l x h]: 1200x900 mm,
- working temperature range: 300 .... 1300 oC,
- equipped with 3 burners;
- installed gas flow: 160 Nm3 / h,
- installed power: 15 kW.
