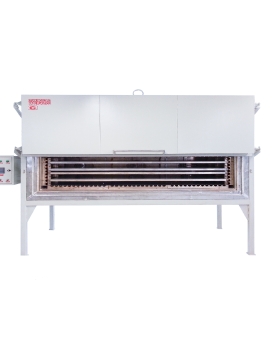

Etuve polimerizare si incalzire mase plastice
he heated steel oven is used for performing technological operations, which require the maintenance of plastics undergoing processing, at constant temperatures, over time, drying, polymerization, aging, deformation, thermoforming, etc. The characteristics below correspond to a product made under a special order. The company Caloris Group SA can deal with the design and realization of the products at the sizes requested by the client.
Specifications:
- Digital display of programmed or indoor temperature;
- Temperature programming with resolution ± 1 ° C;
- Automatic temperature control;
- Stop the heating and sound signaling program end.
- -Constructive, functional and other features
- Supply voltage: 3 x 400 VAC / 50 Hz;
- Installed power: 12 KW;
- Operating temperature range: (100 ... 300) ° C;
- Maximum temperature: 350 ° C;
- Minimum temperature: 50 ° C;
- Temperature gradient: ± 3 oC;
- Display resolution: ± 1 ° C for temperature and 1 min. for time;
- Thermostat accuracy in stabilized mode: ± 1 ° C;
- Usable working area: 0,80 m³;
- Internal dimensions [mm]: Lxixh 2090x850x450
- Overall dimensions [mm]: Lxlxh 3280x1780x2100
- Opening the manual door, in vertical plane, with counterweight;
- The sealing of the work chamber is done with a ceramic fiber cord;
- The homogenization of the temperature in the working chamber is done with a ventilation system with air recirculation for each of the three temperature control zones;
- Exhaust system evacuated during the working process;
- Batch loading and unloading: manual;
- Maximum load weight on a shelf: 10 Kg (distributed over the entire surface);
- Fully automated operation; does not require operator supervision;
- High reliability ensured by the quality of the materials used:
- Stainless steel resistors made of resistive material supplied by KANTHAL Sweden;
- The work area, made entirely of austenitic stainless steel, is provided with 4 removable shelves, configurable, on which the batch with the plastic to be processed is arranged;
- Insulation with mineral wool and ceramic fiber;
- Electronic components import CE.
- Protections to: defective thermocouple, overtemperature;
- Acoustic warning at the end of the cycle and in case of damage;
- Weight: ca 700 Kg.
- The oven is equipped with an electronic temperature regulator with 9 programs, with a microprocessor (controller), with digital display of the programmed sizes, which provides the following facilities:
