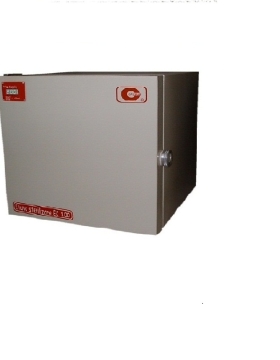

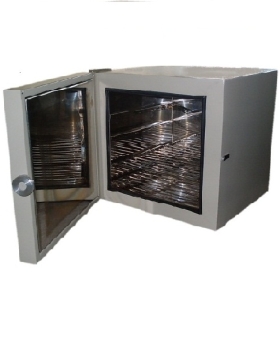

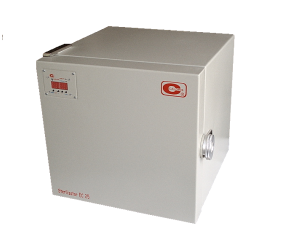

Natural convection ovens and forced convection ovens, having the capacities listed in the table below the 500 l volume that are endowed with the laboratories, are series products of Caloris Group SA.
DESTINATION
- In analytical laboratories in food chemistry to determine humidity;
- in physico-chemical analysis laboratories with the sterilization or pupinel function;
- for controlled drying, laboratory glassware drying, material aging, etc.
FUNCTIONAL CHARACTERISTICS
- ease of use
- low power consumption
- safety in operation (processes controlled by microprocessor)
- high reliability provided by the materials used:
- resistive material KANTHAL - Sweden
- insulation with mineral wool
- microprocessor INTEL - S.U.A.
- electronic components import C.E.
- digital and optical display of temperature and time parameters
- temperature range: 50-240 ºC
- display resolution and temperature control (time): ± 1 ° C (± 1 min)
- hold-up time: adjustable between 1 .. 9999 min
- Time to homogenize the temperature in the enclosure: approx. 45 min.
- protection against accidental interruption of power supply (automatic resumption of the process)
- prestart parameter (after which time to start)
- self-protection (defective thermoresistance, overtemperature, defective power control element)
- warranty and post-warranty service
- spare parts: 10 years after purchase, at manufacturer's price
TECHNICAL SPECIFICATIONS
Device Type | Stabilization Accuracy [oC] | Power Installed [W] | Volume [liters] | Internal Dimensions (LxAxH) [mm] | Warranty |
EC 25 | ± 2 oC | 750 | 25 | 290x330x260 | 12 months |
EC 50 | ± 2 oC | 1400 | 50 | 385x475x275 | 12 months |
EC100 | ± 2 oC
|
1800 | 100 | 450x450x480 | 12 months |
EC200 | ± 2 oC | 2200 | 200 | 565x585x600 | 12 months |
Warranty: 12 months for the oven;
The spare parts are insured for 10 years, at the manufacturer's price.
At customer request, we run unique products in this category with the sizes specified by them.
TECHNICAL SPECIFICATIONS
Device Type | Stabilization Accuracy [oC] | Power Installed [W] | Volume [liters] | Internal Dimensions (LxAxH) [mm] | Warranty |
EC 25 | ± 2 oC | 750 | 25 | 290x330x260 | 12 months |
EC 50 | ± 2 oC | 1400 | 50 | 385x475x275 | 12 months |
EC100 | ± 2 oC
|
1800 | 100 | 450x450x480 | 12 months |
EC200 | ± 2 oC | 2200 | 200 | 565x585x600 | 12 months |
Warranty: 12 months for the oven;
The spare parts are insured for 10 years, at the manufacturer's price.
At customer request, we run unique products in this category with the sizes specified by them.
